Diff Press 4 Click

How does it work?

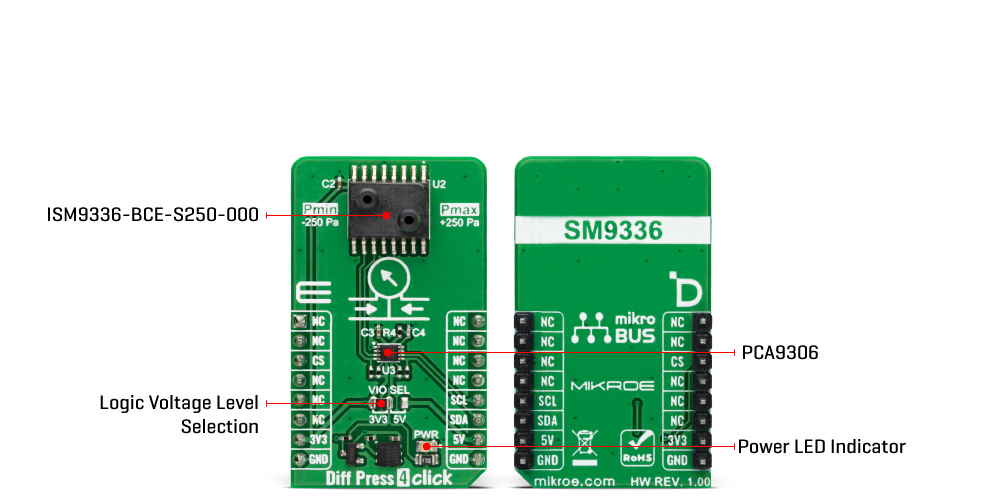

Diff Press 4 Click is based on the SM9336-BCE-S-250-000, a digital pressure and altimeter sensor module from TE Connectivity. It uses state-of-the-art MEMS pressure transducer technology and CMOS mixed signal processing technology to produce digital, fully conditioned, multi-order pressure and temperature-compensated measurements. The sensor comes in the JEDEC standard SOIC-16 package with dual vertical porting that can accept ∅2.2 hoses, where one of them is a high-pressure side, while the other is designated as the vacuum side. It can measure differential pressure from -250Pa up to 250Pa with a total error band after Autozero under 1%.

Diff Press 4 Click can use a standard 2-wire I2C interface to communicate with the host MCU, where you can read both the pressure and the temperature measurements. As the SM9336-BCE-S-250-000 sensor works on 3.3V, this Click board™ comes equipped with the PCA9306, a dual bidirectional I2C bus and SMBus voltage-level translator from Texas Instruments, which allows the use of this Click board™ with systems with 5V logic level.

This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VIO SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on Diff Press 4 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	NC
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

Diff Press 4 Click electrical specifications

Software Support

We provide a library for the Diff Press 4 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for Diff Press 4 Click driver.

Key functions

• diffpress4_get_measurement_data Diff Press 4 gets the raw data function.

• diffpress4_get_status Diff Press 4 get status function.

• diffpress4_get_raw_data Diff Press 4 gets the raw data function.

Example Description

This example demonstrates the use of Diff Press 4 Click board™ by reading and displaying the differential pressure and sensor temperature measurements.

void application_task ( void )
 {
     static float diff_press = 0, temperature = 0;
     diffpress4_status_t status;
     diffpress4_get_status( &diffpress4, &status );
     if ( ( DIFFPRESS4_OK == diffpress4_get_measurement_data( &diffpress4, &diff_press, &temperature ) ) &&
          ( DIFFPRESS4_STATUS_DSP_S_UPDATED == status.dsp_s_up ) &&
          ( DIFFPRESS4_STATUS_DSP_T_UPDATED == status.dsp_t_up ) )
     {
         log_printf( &logger, " Diff Pressure : %.2f [Pa] rn", diff_press );
         log_printf( &logger, " Temperature   : %.2f [degC] rn", temperature );
         log_printf( &logger, " _______________________ rn" );
         Delay_ms( 1000 );
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.DiffPress4

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.

mikroSDK

This Click board™ is supported with mikroSDK – MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
