PROTO Click
R61.50 ex. VAT

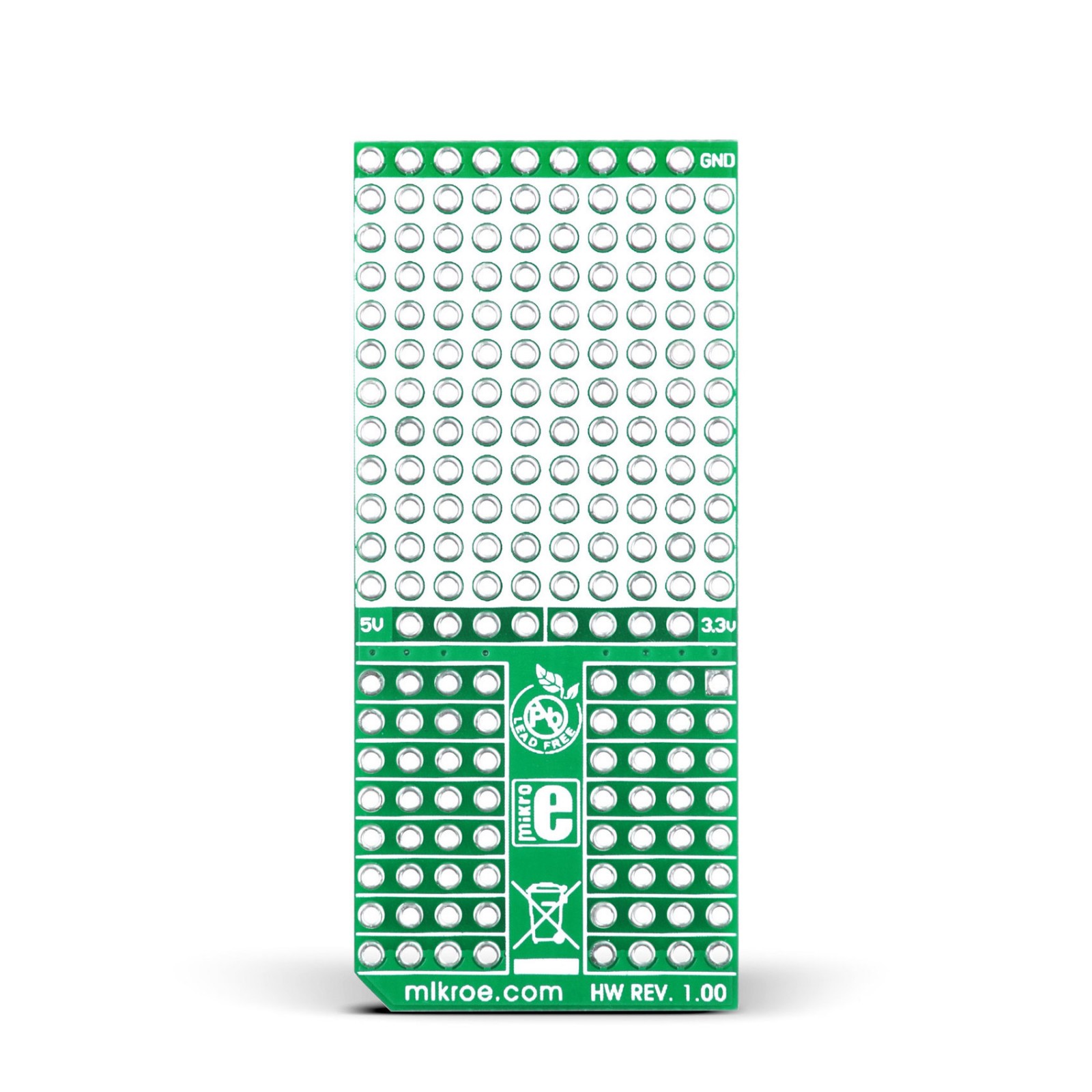

PROTO Click is an accessory Click board™ used as a construction base for prototyping electronics in mikroBUS™ form factor. It features a 10×11 prototyping area and additional power pads providing an easy and elegant solution for adding the external connection capability to the Click board™, plugged on a mikroBUS™ socket. This Click board™ represents a cheap and effective solution for creating a board that suits your project needs.
Stock: Lead-time applicable.
How does it work?
PROTO Click is an accessory Click board™ used as a construction base for prototyping electronics with a mikroBUS™ pins expansion. It allows you to add sensors, drivers, and passive components and make this Click board™ in a way that suits your project needs. It features a 10×11 prototyping area as well as additional power pads (3.3V and 5V power supply pins), providing an easy and elegant solution for adding the external connection capability to the Click board™, plugged on a mikroBUS™ socket.
In addition to the prototype area and the ground part at the top of the PROTO Click, this Click board™ also has a part that represents the expansion of the already existing pins of the mikroBUS™ socket. Those are standard mikroBUS™ I2C (SDA, SCL), SPI (MISO, MOSI, SCK, CS), UART (TX, RX), PWM, INT, AN, and RST lines from the target board microcontroller. Use this Click board™ with all your favorite development boards which carry mikroBUS™ sockets.
Specifications
Type
Proto
Applications
Can be used to assemble custom electronics thus creating a custom Click board™
On-board modules
No modules only 10×11 proto PCB area
Key Features
Easy and elegant solution for adding the external connection capability to the Click board™
Interface
Analog,GPIO,I2C,PWM,SPI
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
L (57.15 x 25.4 mm)
Input Voltage
3.3V,5V
Pinout diagram
This table shows how the pinout on PROTO Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| Analog Signal | AN | 1 | AN | PWM | 16 | PWM | PWM Signal |
| Reset | RTS | 2 | RST | INT | 15 | INT | Interrupt |
| SPI Chip Select | CS | 3 | CS | RX | 14 | TX | UART TX |
| SPI Clock | SCK | 4 | SCK | TX | 13 | RX | UART RX |
| SPI Data OUT | SDO | 5 | MISO | SCL | 12 | SCL | I2C Clock |
| SPI Data IN | SDI | 6 | MOSI | SDA | 11 | SDA | I2C Data |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
Onboard settings and indicators
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | – | Power LED Indicator |
PROTO Click electrical specifications
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | – | 5 | V |
Resources
Downloads
| Weight | 30 g |
|---|---|
| Brand | MikroElektronika |
