Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
mikroBUS socket 3

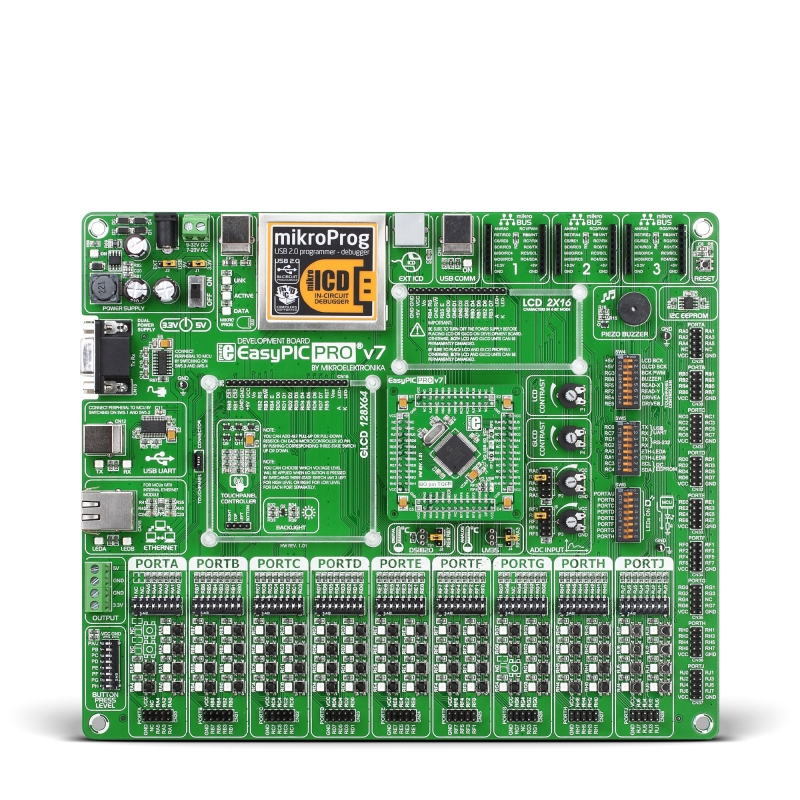

EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 2
EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 1
EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
USB device connector
USB Device Connector is used for connecting the board with other devices such as PC using fast USB 2.0 communication.
ICD2/ICD3 connector
If you need to use other external programmer with EasyPIC PRO v7, we have provided the ICD2/ICD3 compatible connector, so you can override the on-board mikroProg.
mikroProg™
On-board mikroProg™ In-Circuit Debugger and programmer is supports over 250 microcontrollers from Microchip.
Programmer USB connector
Programmer USB connector is connected to on-board mikroProg, but can also be used to power the board, when the J2 jumper in the Power Supply section is in the USB position.
Dual Power Supply
Board is equipped with power supply unit capable of supporting both 3.3V and 5V microcontrollers. Board can be powered over USB cable, or external adapter connectors.
RS-232 Connector
You can implement UART communication through RS-232 connector provided on the board.
USB-UART Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.
Ethernet Connector
Microcontrollers with internal ethernet support can be connected to this RJ-45 connector to establish ethernet communication.
Output Voltage Terminals
Board features two pairs of high-quality screw terminals meant to be used as an output of the on-board dual power supply module. Use them to power your additional 5V and 3.3V devices.
Button Press Level
Use these switches to pull-up or pull-down buttons in each input/output group.
GLCD 128×64 pixels
You can place GLCD 128×64 display directly on the board and firm it in place securely using high-quality plastic distancer, specially designed for this purpose.
Touch Panel Controller
Touch panel controller with connector is provided for analog resistive touch panels attached to the GLCD 128×64 to form GLCD Touch screen.
GLCD/LCD Backlight
GLCD and LCD backlight can be driven with PWM signal from the microcontroller, or they can be turned on in full brightness.
Tri-state DIP switches
Tri-state DIP switches are used to enable 4K7 pull-up or pull-down resistor on any desired PORT pin.
Push buttons
Push buttons in each Input/Output group enable you to have digital inputs on each port pin. Buttons are of high quality and have an exceptional and stable response.
SMD LEDs
Each Input/Output PORT group contains red SMD LEDs with low current consumption of only 1mA. Board contains total of 36 LEDs for PORT pins.
PORT Headers
Two male IDC10 port headers are available in each Input/Output group, which is convenient for easier access to any PORT pin.
DS1820 Temp Sensor
Board supports Dallas DS1820 One-Wire digital temperature sensor. You can measure temperatures from -55C to +125C (-67F to +257F), with 0.5C accuracy.
LM35 Temp Sensor
The LM35 is a low-cost precision integrated-circuit analog temperature sensor. It can measure temeperatures from -55C to +150C with 0.25C accuracy at room temperatures.
MCU card
Featuring nanoWatt XLP Technology, PIC18F87K22 is great 8-bit microcontroller with lots of peropherals. It has 128KB of program memory, 3862 bytes of RAM and up to 16 MIPS operation.
LCD 2×16 characters
Board is equipped with LCD 2×16 connector which allows you to connect LCD 2×16 display and place it securely using plastic distancer, specially designed for this purpose.
LCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your LCD 2×16 character display.
GLCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your GLCD 128×64 display.
ADC potentiometers
You can simulate analog inputs using two provided analog potentiometers which can be connected to each of the 10 supported microcontroller analog input pins.
Oscilloscope GNDs
Three separate GND pins are available on the board for easier connection of GND reference for oscilloscope probes.
Right PORT Headers
We have provided additional PORT header on the right side of the board, so you can now access the desired microcontroller pins on the other side of the board too.
I2C EEPROM
You can store 8×256 bytes of configuration data or other data into on-board 24AA01 Serial EEPROM with I2C interface.
Piezo Buzzer
With piezo buzzer you can debug your applications, or have audio signalization feature. It can be connected to two digital output pins, one of which is the output of PWM module.
