DC Motor 30 Click

How does it work?

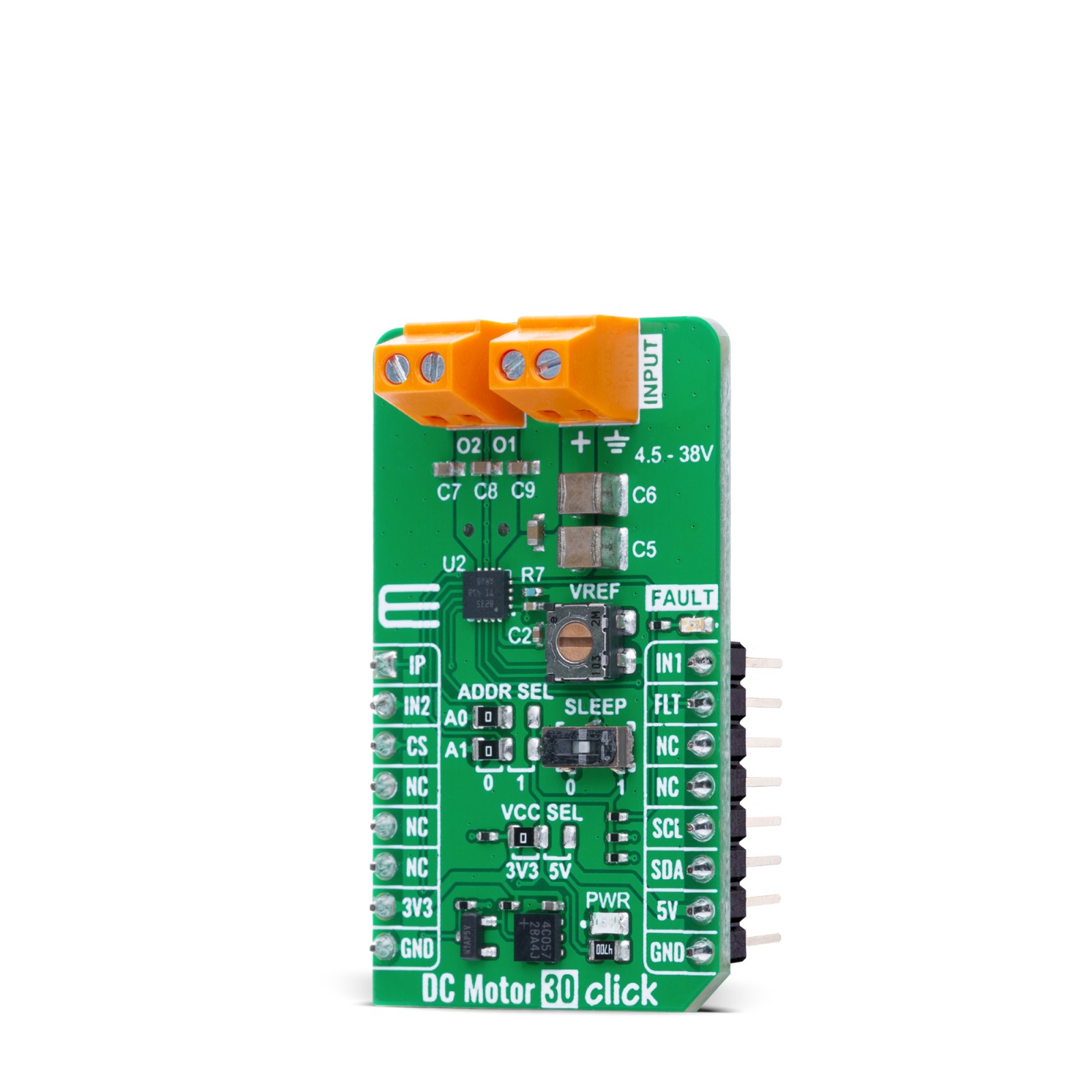

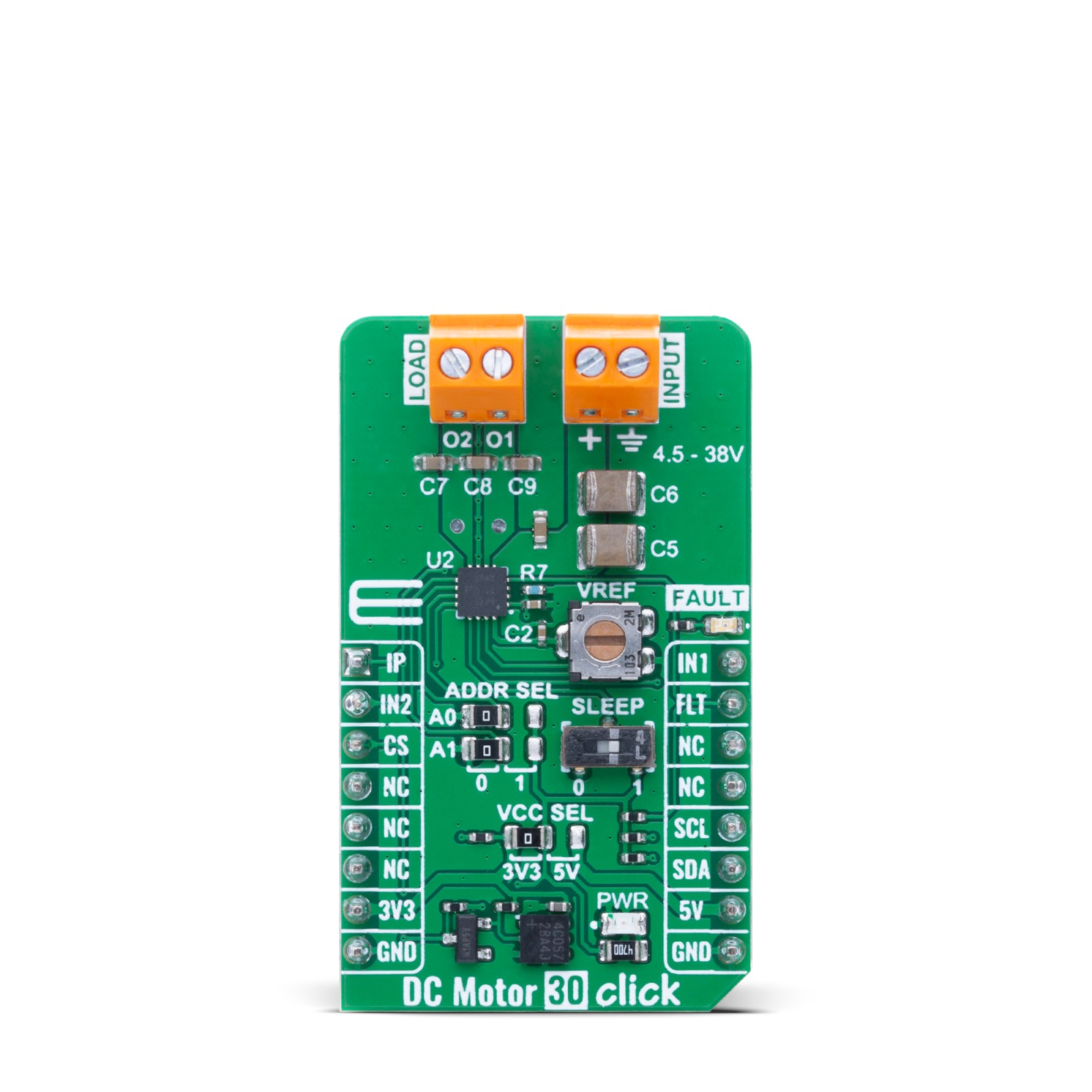

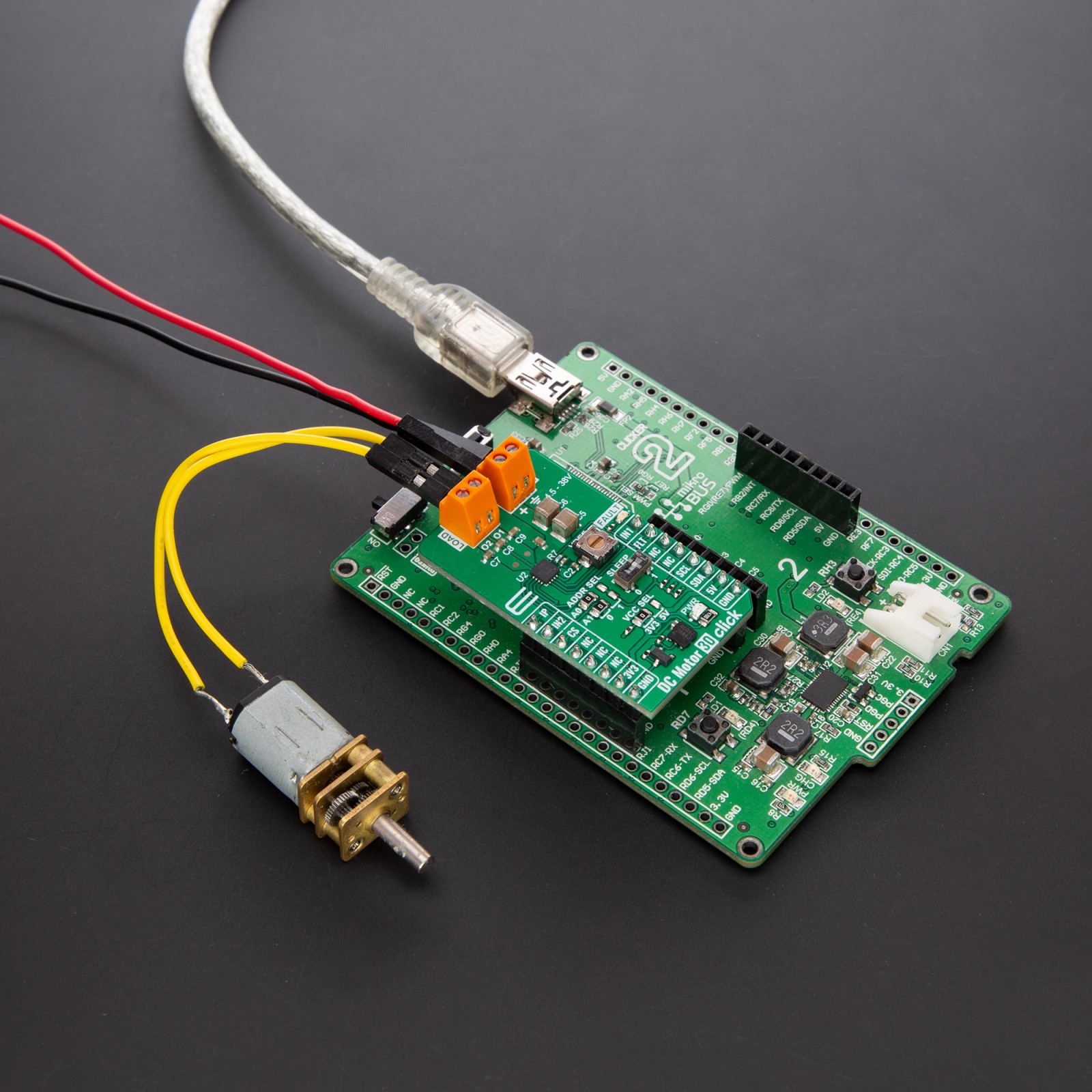

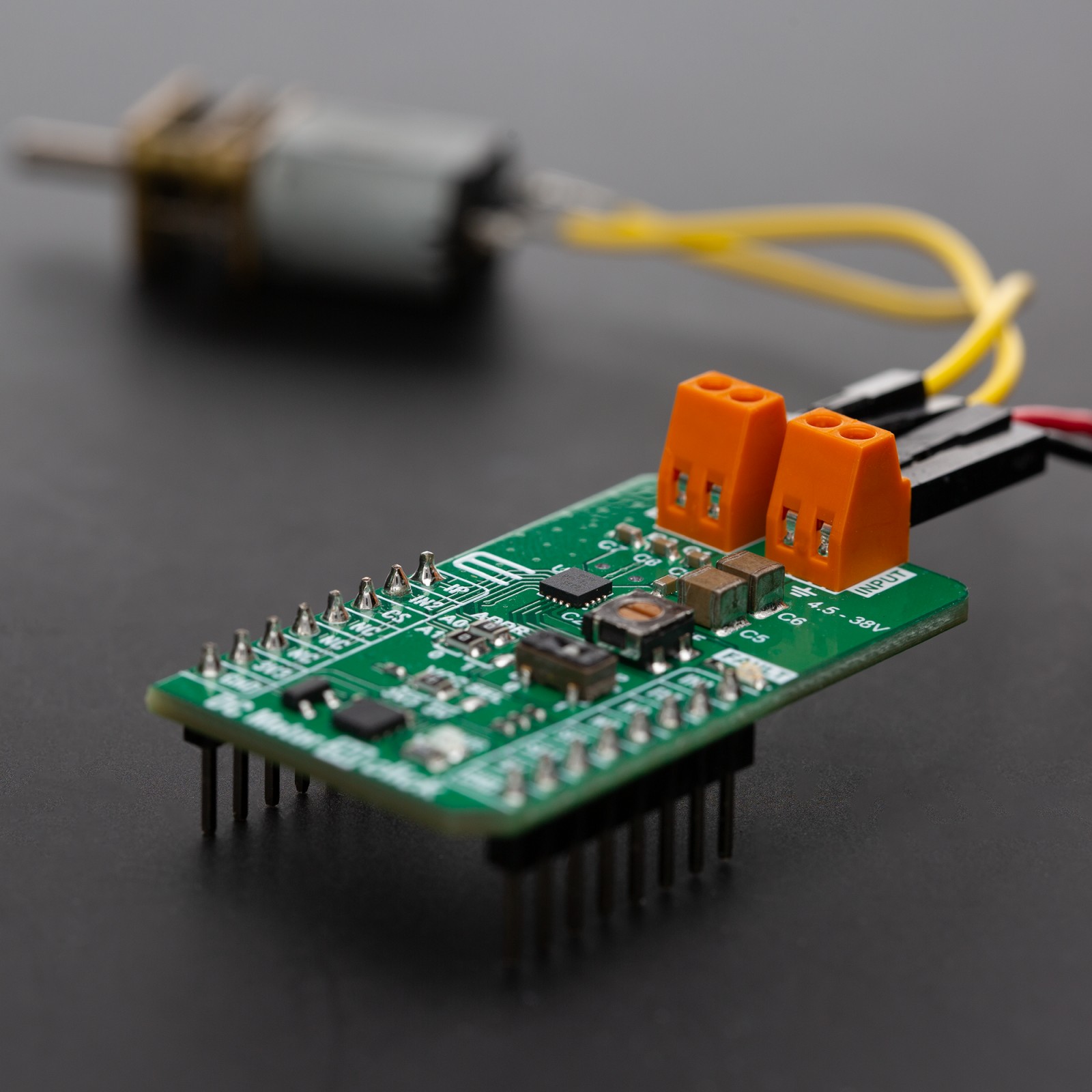

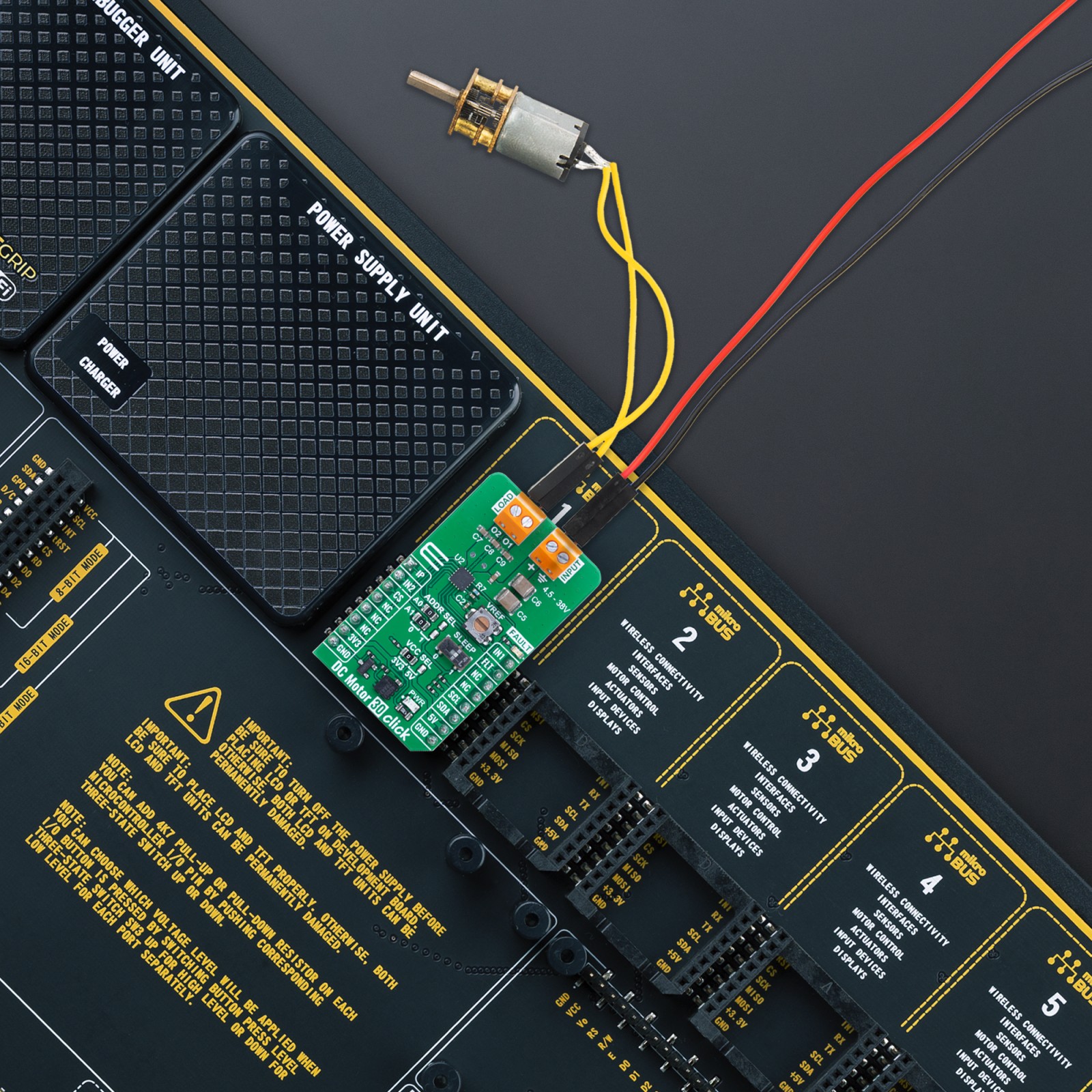

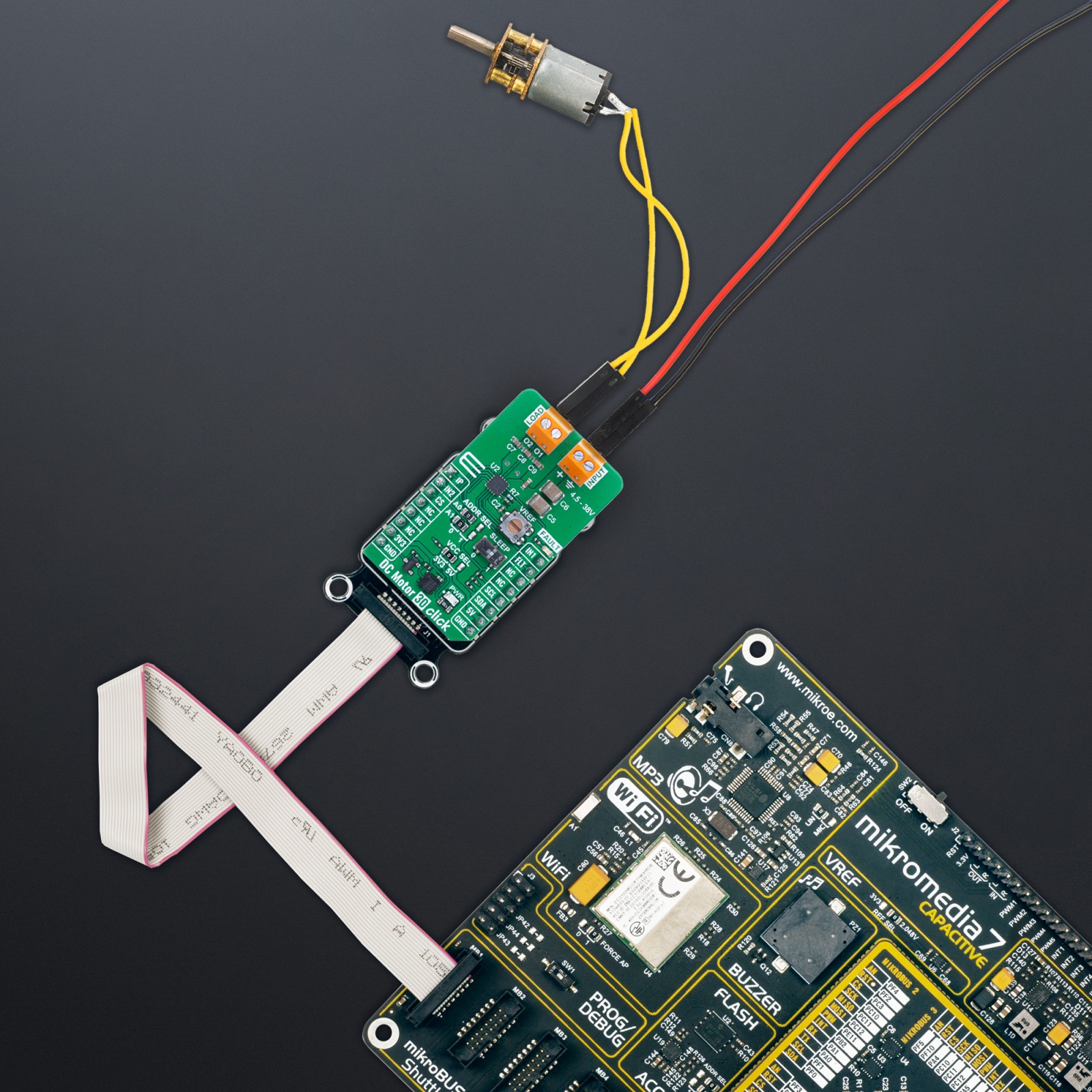

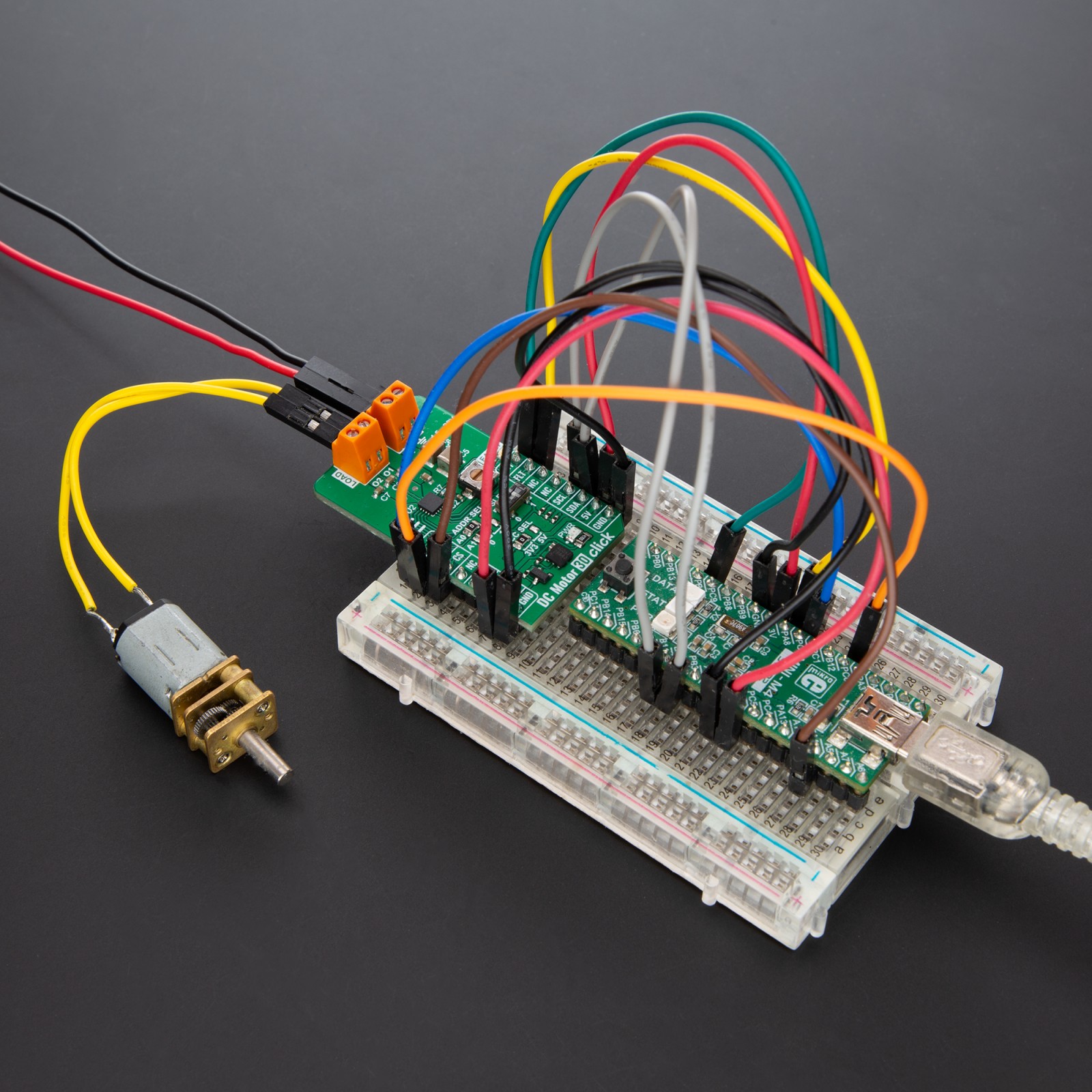

DC Motor 30 Click is based on the DRV8235 motor driver from Texas Instruments. This driver combines a full N-channel H-bridge configuration with built-in speed regulation, stall detection, current sensing, and a wide array of protection features, making it suitable for various precision-driven applications such as printers, vacuum robots, washers and dryers, coffee machines, POS printers, hospital bed and bed control systems, and fitness machines. The DRV8235 supports a broad supply voltage range from 4.5V to 38V provided through the INPUT terminal and is capable of delivering up to 2A RMS continuous current, with peak current reaching 3.7A on the LOAD terminal, ensuring compatibility with a wide range of brushed DC motors in compact or power-sensitive systems.

At the heart of DC Motor 30 Click lies the DRV8235’s integrated speed regulation capability, which allows the system to maintain a consistent motor speed across varying supply voltages and changing mechanical loads. By leveraging real-time voltage and current feedback from the motor, this feature eliminates the need for external speed sensors, reducing system complexity. The speed regulation not only ensures smooth operation but also contributes to long-term power savings and reduced thermal stress on system components. Furthermore, the device implements a soft-start and soft-stop mechanism, providing controlled motor ramp-up and shutdown that mitigates large inrush currents and mechanical stress, thus protecting motor windings and increasing system reliability.

DC Motor 30 Click features dual control modes to accommodate various system requirements. The traditional PH/EN interface using IN1 and IN2 pins allows direct control of the H-bridge’s operation, which is built from four low-resistance N-channel MOSFETs with a typical RDS(ON) of 600mΩ (combined for high-side and low-side FETs). Additionally, the board supports a 400kHz I2C communication interface, enabling access to a set of programmable registers that provide advanced diagnostics, stall detection settings, and current limit configuration. Stall detection is based on real-time current monitoring using the IP pin, which outputs a current-sense signal proportional to the motor current. This feedback is also used for monitoring during drive and brake/slow-decay states, allowing the host MCU to assess motor behavior in various operating conditions. The current regulation feature, configured via the VREF trimmer and IP feedback, ensures the motor current stays within a safe predefined limit, further enhancing control precision and safety.

The DRV8235 integrates multiple protection features to ensure safe operation under fault conditions. These include undervoltage lockout (UVLO), overcurrent protection (OCP), thermal shutdown (TSD), and overvoltage protection (OVP). The FLT pin, in a combination with a red FAULT LED on the board, provides immediate visual feedback of any active fault, aiding in quick diagnostics and system troubleshooting. The overvoltage protection function is particularly crucial when the motor is manually rotated while the driver is disabled or in sleep mode, as it automatically engages the brake state to suppress back EMF-induced voltages that could otherwise damage sensitive electronics.

To further support energy-efficient operation, the board includes a SLEEP switch that toggles the DRV8235 between active and ultra-low power standby mode. In the left (0) position, the switch places the device into sleep mode, significantly reducing current consumption during system inactivity. In the right (1) position, the device is fully enabled and ready to drive the motor.

This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

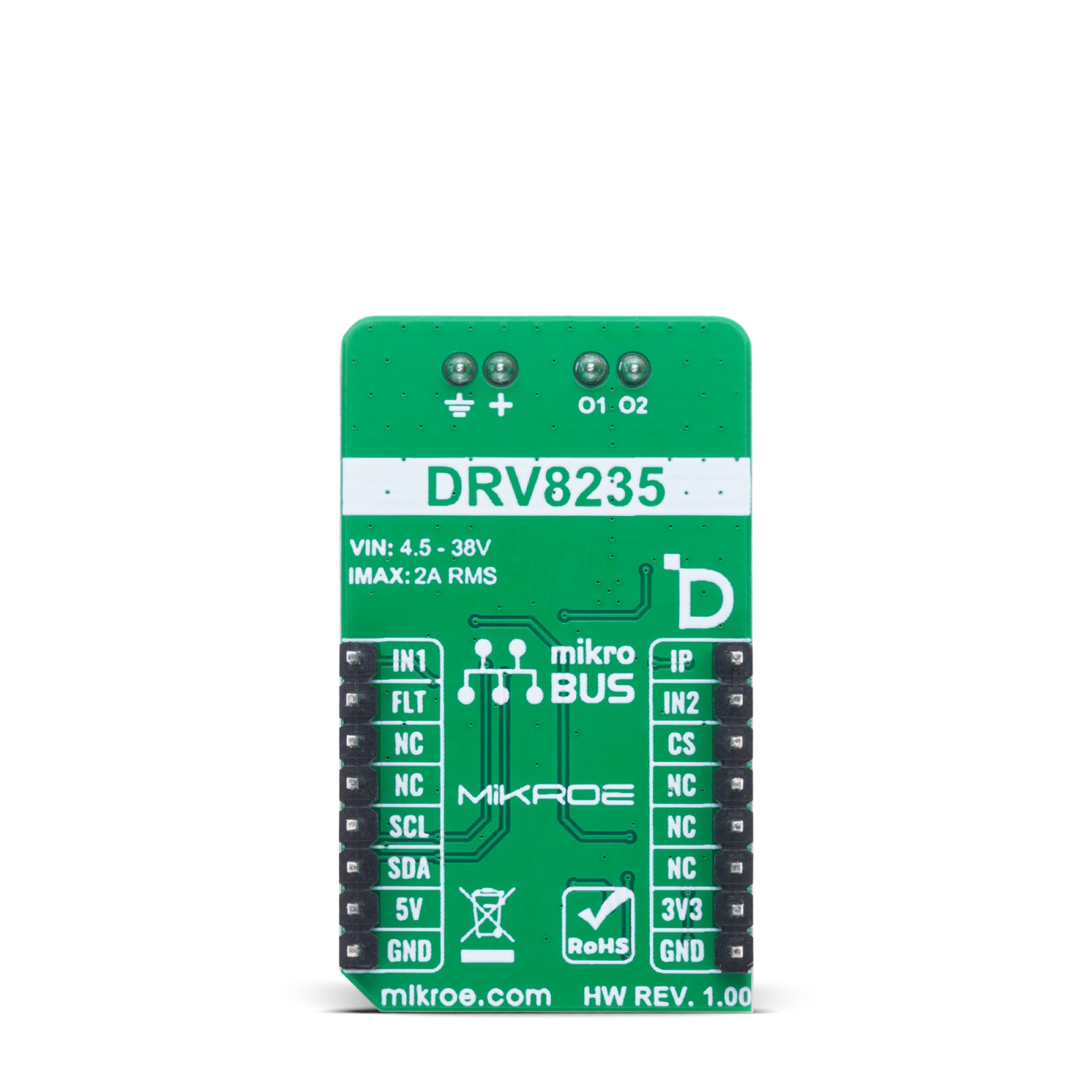

This table shows how the pinout on DC Motor 30 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Analog Current Output	IP	1	AN	PWM	16	IN2	H-Bridge Control
H-Bridge Control	IN2	2	RST	INT	15	FLT	Fault Indication
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

DC Motor 30 Click electrical specifications

Software Support

DC Motor 30 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK‘s open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description

This example demonstrates the control of a DC motor using the DC Motor 30 Click board. It performs motor driving in different modes (forward, brake, reverse, and coast) and periodically reads the output current and fault status.

Key Functions

• dcmotor30_cfg_setup This function initializes Click configuration structure to initial values.
• dcmotor30_init This function initializes all necessary pins and peripherals used for this Click board.
• dcmotor30_default_cfg This function executes a default configuration of DC Motor 30 Click board.
• dcmotor30_drive_motor This function drives the motor in the selected PWM control mode state.
• dcmotor30_get_out_current This function reads the current output measurement in mA.

Application Init

Initializes the logger and the Click board driver, then sets the default configuration.

Application Task

Drives the motor in different states and monitors the current consumption and possible fault conditions.

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output – Use the “Application Output” window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal – Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
